Ford Raptor R 4X4 Ultimate

101177-4-FOX2

Product variants

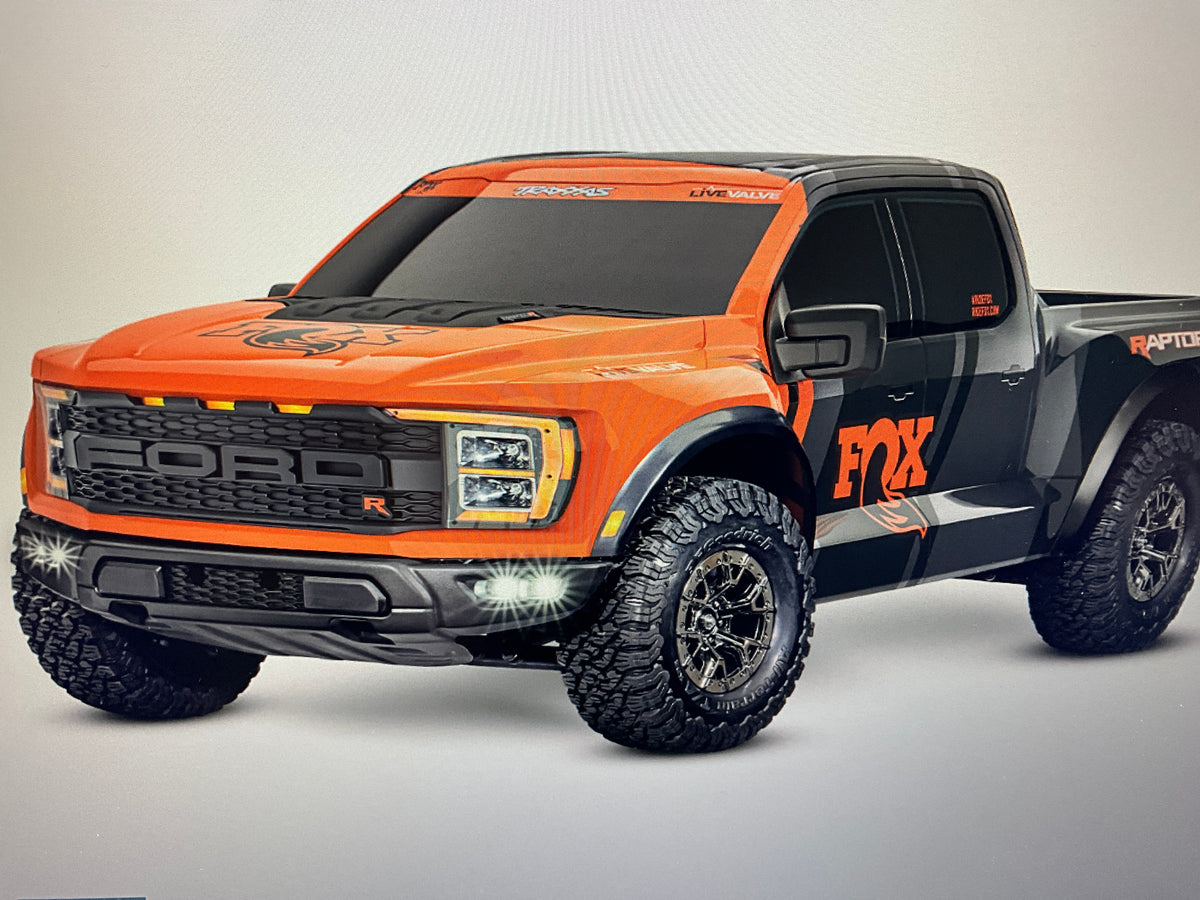

Officially Licensed Ford^® F-150^® Raptor R™ Clipless Pro Scale^® Body
- Molded scale details: bumpers, grille, tailgate, side mirrors, and hood vent
- LED lighting in front and rear bumpers
- Body reinforcements to prevent pull-through damage
Clipless Body Mounting
- Holds tight for intense action
- Quick and easy removal
- Smooth appearance with no body posts or clips
Color-Matched Aluminum Suspension Parts
- 6061-T6 aluminum C-hubs
- 6061-T6 aluminum steering blocks
- 6061-T6 aluminum rear hub carriers
VXL-4s™ Waterproof Electronic Speed Control
- 2s–4s LiPo compatible
- Real-time telemetry via Traxxas Link™
- Selectable 7.4-volt high-voltage BEC
- Large Heat sink accepts accessory cooling fan (3340)
- Three Programmable Drive Profiles
  - Sport Mode - Forward / Brake / Reverse
  - Race Mode - Forward / Brake
  - Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set^® one-button setup
- Integrated protection circuits
- LED status lights

Velineon^® 540XL Brushless Motor
- Long format brushless motor
- 4-pole 2400 Kv
- 5 mm output shaft
- Low-maintenance design
TQi™ 2.4 GHz Radio System with Wireless Module
- Factory-installed telemetry sensors
- TQi 2-channel high-power transmitter
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- 5-channel micro receiver (6533) with fail-safe security
- Patented waterproof receiver box with easy-access plug
Traxxas Stability Management^® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
Suspension
- Heavy-duty suspension arms
- Adjustable 4 mm steel toe and camber links
- Aluminum oil-filled GTR shocks
  - 70% more oil capacity than standard Ultra Shocks™
  - Threaded bodies with adjustable spring collars
  - TiN-coated shock shafts to reduce friction

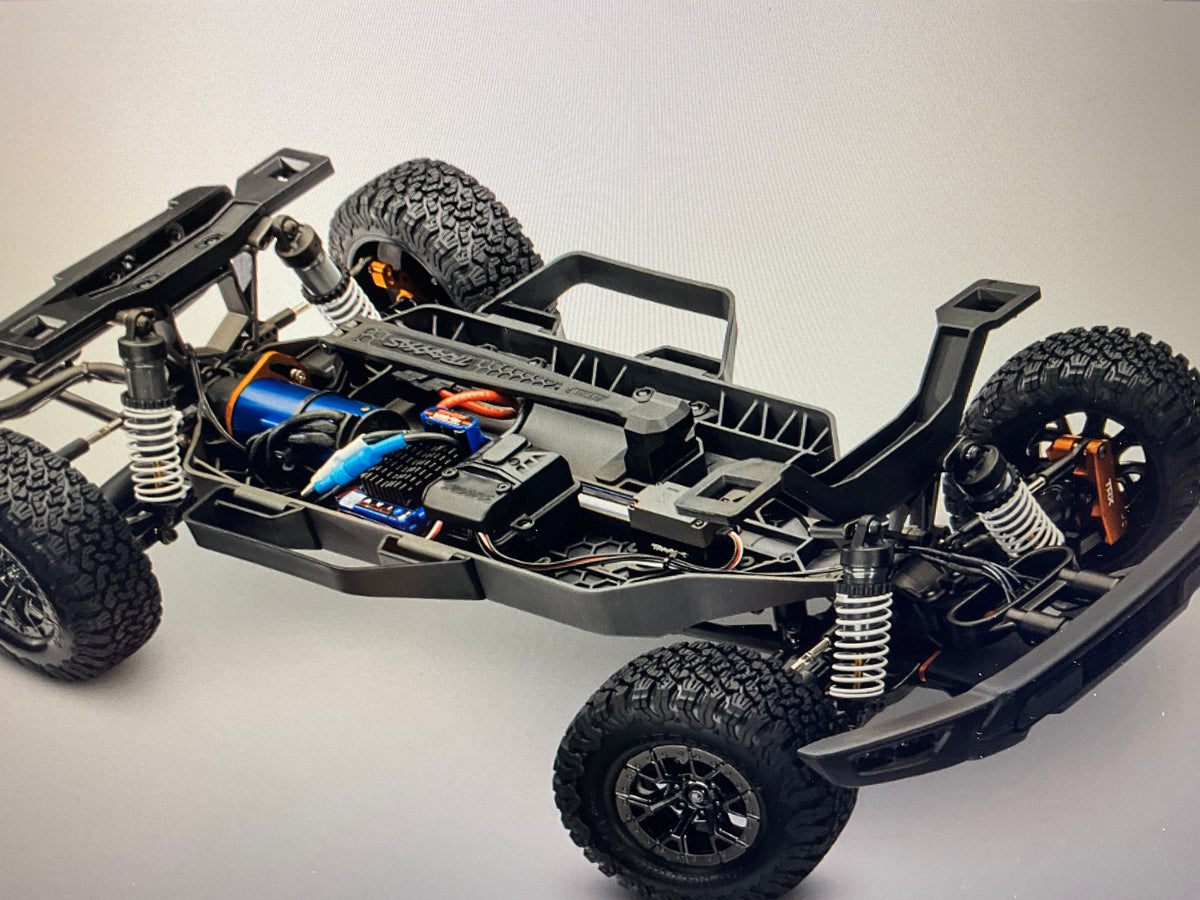

Chassis
- Extended modular composite tub design
- Heavy-duty front & rear shock towers
- Secure battery hold-down latch
- Side nerf bars for impact resistance
Steering
- 2275 waterproof metal-gear servo
  - 347 oz-in torque @ 6.0 volts
  - Aluminum center case w/ full bearings
- Dual bellcrank design with integrated servo saver
Drivetrain
- Full-time shaft-driven 4-wheel drive
- Center differential with 20-million weight oil
- Oil-filled, steel gear front and rear differentials
- Steel 32-pitch spur gear
- Anodized-aluminum center driveshaft
- Maxx-duty driveshafts
  - Oversize diameter
  - 6 mm axles
Wheels and Tires
- Licensed Ford^® replica option wheels
  - 2" outer diameter, 3" inner diameter
- Licensed BFGoodrich^® All-Terrain T/A^® KO2 tires
  - Large 114 mm diameter
Sealed Ball Bearings

Hex hardware with Rust-Resistant Black Oxide Coating

MODEL SPECS

Name:	Ford Raptor R 4X4 Ultimate
Type:	Short Course Truck
Speed:	60+ mph with 4s LiPo (sold separately)
Skill Level:	2
Scale:	1/10
Weight:	6.62 pounds (3.00 kg)
Length:	24.98 inches (637 mm)
Width:	11.63 inches (289 mm)
Front Track:	11.63 inches (289 mm)
Height:	8.91 inches (226 mm)
Rear Track:	11.63 inches (289 mm)

Wheelbase:	15.11 inches (384 mm)
Center Ground Clearance:	2.05 inches (52 mm)
Driveline:	Shaft-driven 4WD w/ Torque-Biasing Center Drive
Differentials:	Hardened steel bevel, sealed, limited slip
Gear Pitch:	32 pitch
Steering Servo:	2275 high-torque waterproof
Radio System:	TQi™ 2.4 GHz 2-channel radio with wireless module
Battery Compartment Specs:	165 mm X 50 mm X 32/35 mm

Motor Type:	540XL 2400 Kv sensorless brushless
Weight:	11.18 ounces (317 g)
Length:	3.58 inches (91 mm)
Diameter:	1.41 inches (36 mm)
Shaft Size:	5 mm
Connector Type:	Traxxas 6.5 mm bullet connectors

Input Voltage (cells):	2S-4S LiPo (7.4 V - 16.8 V)
Case Size:	2.40″ (61 mm) x 2.09″ (53 mm) x 1.42″ (36 mm)
Weight:	4.20 ounces (119 g)
BEC Voltage:	Selectable 6.0 or 7.4 volts
Motor Connectors:	Traxxas 6.5 mm bullet connectors
Battery Connectors:	Traxxas High-Current Connectors
Thermal Protection:	Two-stage thermal shutdown
Ports:	RX input, auxiliary fan connector
