MKS

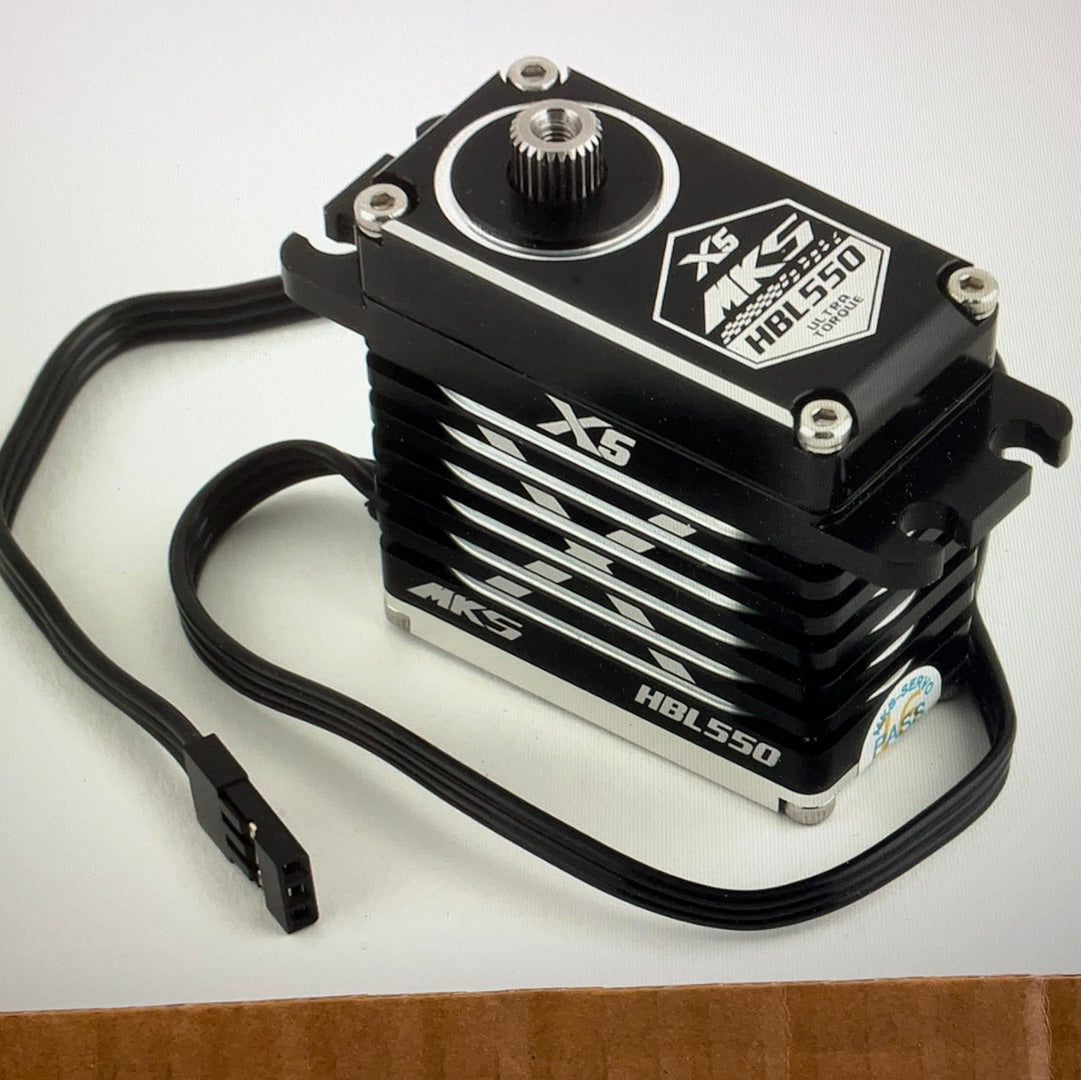

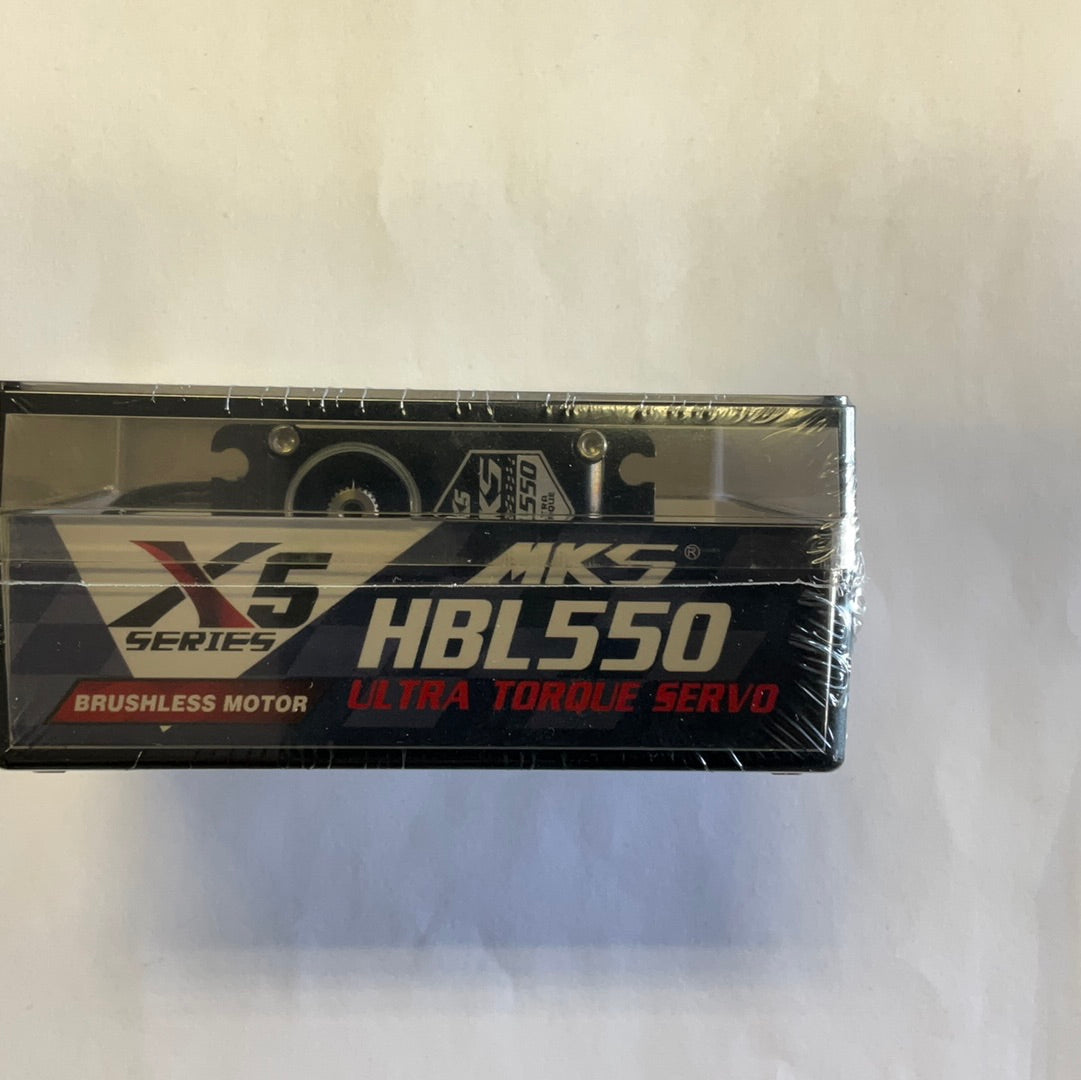

MKS Servos X5 HBL550 Brushless Metal Gear High Torque Digital Servo (High Voltage)

Regular price
$114.99
Regular price
Sale price
$114.99
MKS X5 HBL550 Brushless Servo

Specifications:

  • Torque:
    • @6.0V: 402 oz-in
    • @7.4V: 499 oz-in
    • @8.4V:  527 oz-in
  • Speed:
    • @6.0V: 0.117 s
    • @7.4V: 0.094 s
    • @8.4V: 0.085 s
  • Weight: 79.5 g
  • Dimension: 40x20x38.5mm
  • Working Voltage: 3.5 ~ 8.4 V (2S LiPo unregulated)
  • Working frequency: 1520?s / 333Hz
  • Dead Band: 0.001 ms (Default)
  • Bearing: 2BB
  • Motor: Brushless Motor
  • Gear: Alloy gear
