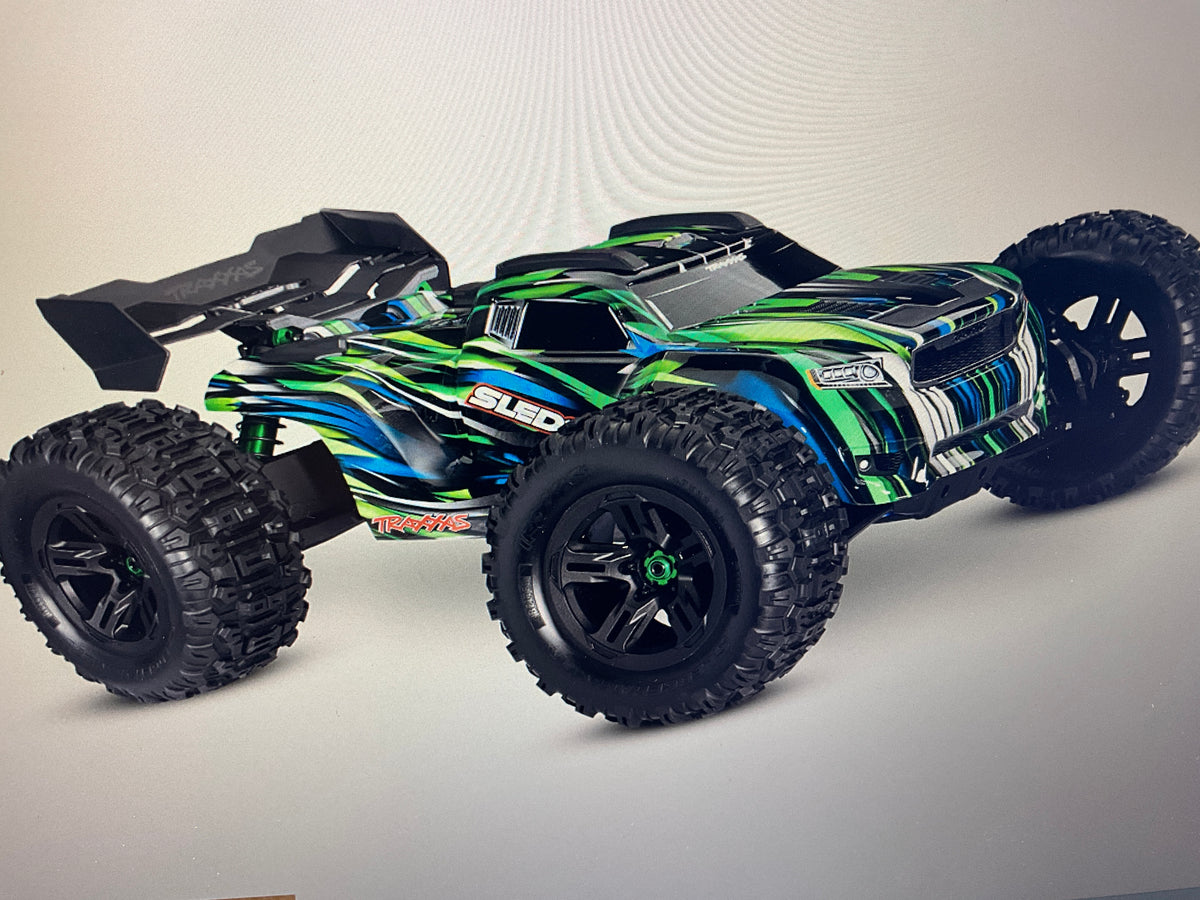

Sledge

95096-4-GRN

Product variants

Up to 70+ mph with Two 3s LiPo Batteries (sold separately)
VXL-6s™ Waterproof Electronic Speed Control
- 6s LiPo compatible
- Integrated cooling fan
- Real-time telemetry via Traxxas Link™
- 3-LED status indicators
- Powered accessory ports
- 10-gauge silicone wire
- Integrated protection circuits
Velineon^® Brushless Motor
- 4-pole 2000 Kv
- 5 mm output shaft
- Finned can for better heat dissipation
- Aluminum motor cradle mount
  - Supports entire motor length
  - Reduces flex for longer gear life
Traxxas Stability Management^®
- Helps prevents spinouts and loss of control
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
TQi™ 2.4 GHz High Output Radio System
- Traxxas Link enabled
- 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
- Programmable Multi-Function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)

Driveline
- Full-time 4-wheel drive
- Heavy-duty steel driveshafts
- Large 8 mm steel stub axles
- Steel dogbone center driveline
- Protective rubber boots on differential inputs
Transmission
- Mod-1 pinion and spur gears
- Fixed gear mesh system
- Torque-Biasing Center Drive
Differentials
- Heavy-duty sealed 4-gear design
- Large scale steel ring and pinion gears
- Large 8 mm output shafts
- Steel drive cups
- Easy access bulkheads
GT-Maxx^® Shocks
- Longer rear shocks for more travel
- Machined aluminum threaded body
- Extra-large bore and capacity
- Large-diameter damper shaft
- Lower seal cartridge with dual X-rings
- Height-adjustable spring retainer
- Lower spring perches bolted on
Suspension
- Thick 5 mm 6061-T6 aluminum shock towers
- Ultra-tough composite arms
  - Made from our strongest cold-weather material
  - Molded insert for clean look
  - Rear rock deflectors
  - Press-in hinge pins to reduce play
- Oversize molded toe and camber links
- Heavy-duty C-hubs with oversize bearings
- Multiple mounting points for suspension tuning

Chassis
- 3.2 mm ribbed aluminum chassis
  - Formed edges for improved strength
- Thick aluminum T-Bar™ for added rigidity
- High-strength buttressing on shock towers
- Rugged locking battery compartment with quick-release door
- Low-CG design for improved handling
- Interlocking components for tight tolerances
- Tough front and rear bumpers double as skid plates
- Hidden wire management for clean appearance
Clipless ProGraphix^® Body
- One-handed clipless body mounting system
- Rigid internal frame
- Molded body reinforcements for tear-through protection
- Protective roof skids
- Rugged high-downforce rear wing
Steering
- Waterproof 2275 metal gear servo
  - 347 oz-in torque
- High-throw bellcrank steering design
- Heavy-duty servo saver with aluminum posts
- Metal servo horn

Wheels and Tires

Splined 17 mm aluminum axle hubs

MODEL SPECS

Name:	Sledge^® Belted
Type:	Monster Truck
Speed:	70+ mph with 6s LiPo battery and optional gearing
Skill Level:	4
Scale:	1/8
Weight:	12.74 lbs (5.77 kg)
Length:	23.78 inches (604 mm including wing)
Width:	18.10 inches (459 mm)
Front Track:	18.10 inches (459 mm)
Rear Track:	18.10 inches (459 mm)
Height:	8.43 inches (214 mm)

Wheelbase:	15.10 inches (384 mm)
Center Ground Clearance:	1.95 inches (50 mm)
Driveline:	Shaft-driven 4WD
Transmission:	Single speed
Differential Type:	Sealed, hardened steel bevel, limited slip
Gear Pitch:	1.0 metric pitch
Steering Servo:	2275 digital metal-gear waterproof (347 oz-in)
Radio System:	TQi™ 2.4 GHz 2-channel transmitter with TSM^® receiver
Battery Compartment Specs:	181 mm X 54 mm X 45 mm

Name:	VXL-6s
Type:	Brushless
Case Size:	2.28” (58 mm) x 2.83” (72 mm) x 1.81” (46 mm)
Weight:	7.30 oz (207 g)
Motor Connectors:	6.5 mm bullet connectors
Battery Connectors:	Traxxas High-Current Connectors
